80KHz |40° | 0.25~5m| used for ultrasonic distance sensor, ultrasonic liquid level sensor, ultrasonic range finder, ultrasonic sensor for non - contact detect objects, etc.
About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency,
Also we can accpet customization.
| Quantidade: | |
|---|---|
Introduction:
PH80F0255 ultrasonic sensor has the functions of transmitter and receiver. It' s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non - contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters:
Model | PH80F0255 |
Center resonant frequency(kHz) | 80KHz±2.0Khz |
Bandwidth | 6.0Khz |
Detection distance | 0.25~5m |
Blind spots | <0.25m |
Launch angle beam (- 6dB full angle) | 40±2° |
Sensitive | - 60dB min |
Electrostatic capacitance | 1600PF±20% |
Minimum parallel impedance | 250Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | 800Vp - p |
Operating temperature | - 20 ~80℃ |
Storage temperature | - 40 ~85℃ |
Protection level | IP65 |
Size (diameter*height, mm) | Φ40x30 |
Installation | External cycle fixed |
Case Material | Aluminum |
Cable length | 0.2m (can be customized) |
Weight | 80g |
Photo:

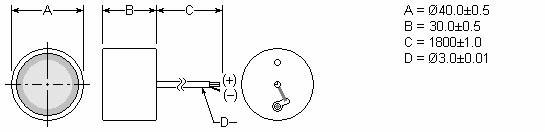

Outline Dimension:
![P0} 1$U8XI [YBI _ 7MD `7F2] B.png](http://a3.leadongcdn.com/cloud/ijBqnKjlRikSkroqkqio/P0-U8XI-YB.png "P0}1$U8XI[YBI_7MD`7F2]B.png")
Test Circuit:
Features of ultrasonic sensors:
1.Small size and light - weight
2.High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Solid package (ABS or Aluminum alloy shell)
2.Installation expediently (M20*1.5 Screw)
Application:
1.Posicionar a posição
2.Aproximar a medida
3.Traficar a medida
4.Evitando obstáculos
